1. Design and manufacture according to: API 6D, BS 5351;
2. Connection flange ends according to: ANSI B16.5;
3. Test and inspection according to: API 598.
4. Structure features: trunnion mounted ball;
5. Material conform to : ANSI/ASTM
6. Main Material: A105(N), LF2, F304(L), F316(L), F51, F91, F11, F22, F321, etc.
The trunnion mounted ball valve offers superior performance in high-pressure applications. Made from ASTM A105 forged steel, it withstands extreme temperatures and pressures with minimal deformation. Its fixed ball design ensures stable operation under high differential pressure, reducing wear and extending service life. With worm gear operation, the valve provides high torque output with low operating force, enabling smooth and precise actuation. Equipped with flanged ends per ANSI B16.5, installation is straightforward and secure. Compliant with API 6D and 100% tested per API 598, it guarantees bubble-tight shut-off using soft-seated PTFE seals. Ideal for oil, gas, and chemical processing systems where reliability and safety are critical. Trust SFANVALVE for precision-engineered trunnion mounted ball valves built for durability and long-term performance.
| Brand | SFAN VALVE OR "OEM" |
|---|---|
| Flow bore | Reduced bore or Full bore |
| Material | Carbon steel, Stainless steel, Alloy steel or other |
| Dimension | DN10(1/4") to DN1400(56") |
| Class | 150~2500 |
| Medium | Water, oil &gas. |
| Temperature | -196℃(cryogenic design) to 560℃ |
| Valve test | 100% quantity tested before delivery |
| Valve guarantee | 18 months after shipments and 12 months after installed |
| Packing | Plywood or carton cases |
| Delivery time | 7 days to 30 days |
| Place of Origin | Zhejiang, China |
FORGED TRUNNION BALL VALVE| Nominal diameter(in) | NPS 2～48 | ||||||
|---|---|---|---|---|---|---|---|
| Nominal pressure(Class) | Class150～Class2500 | ||||||
| Materials of parts | No | Part Name | Material | Stainless Steel | |||
| Part Name | Carbon Steel | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | ||
| 1 | Body | ASTM A105 | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 2 | Bonnet | ASTM A105 | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 3 | Ball | ASTM A105·ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 4 | Stem | ASTM A182 F6a | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 5 | Seat | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | |
| 6 | Seat ring | ASTM A105·ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 7 | Bearing holder | ASTM A105·ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 8 | Seal gland | ASTM A105·ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 9 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite | |
| 10 | Connection plate | ASTM A105 | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L | |
| 11 | Pin | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | |
| 12 | Pin | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | |
| 13 | Flat key | ANSI 1045 | ANSI 1045 | ANSI 1045 | ANSI 1045 | ANSI 1045 | |
| 14 | Thrust bearing | PTFE | PTFE | PTFE | PTFE | PTFE | |
| 15 | Thrust bearing | PTFE | PTFE | PTFE | PTFE | PTFE | |
| 16 | Sliding bearing | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | |
| 17 | Spring | 17-7PH | 17-7PH | 17-7PH | 17-7PH | 17-7PH | |
| 18 | O Ring | VITON | VITON | VITON | VITON | VITON | |
| 19 | O Ring | VITON | VITON | VITON | VITON | VITON | |
| 20 | O Ring | VITON | VITON | VITON | VITON | VITON | |
| 21 | O Ring | VITON | VITON | VITON | VITON | VITON | |
| 22 | Anti-fire packing | Graphite | Graphite | Graphite | Graphite | Graphite | |
| 23 | Stud | A193 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 24 | Hexagon nut | A194 2HM | A194-8 | A194-8M | A194-8 | A194-8M | |
| 25 | Socket head cap screw | A193 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 26 | Socket head cap screw | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 27 | Sealant injection valve | A193 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 28 | Sealant injection valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 29 | Check valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 30 | Air release valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 31 | Drainage valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 32 | O Ring | VITON | VITON | VITON | VITON | VITON | |
| 33 | Anti-fire gasket | SST+Graphite | SST+Graphite | SST+Graphite | SST+Graphite | SST+Graphite | |
| Applicable service conditions | Applicable media | Water, steam, oil gas, liquefied gas,natural gas,etc. | Nitric Acid | Nitric Acid | Strong Oxidizer | Urea | |
| Applicable service conditions | Applicable temperature | ≤120℃ (PTFE)、≤80℃ (NYLON)、≤250℃ (PEEK)、≤250℃ (PPL) | |||||
| Design and manufacturing | API 608、API 6D | ||||||
| Face-to-face dimensions | ASME B16.10、API 6D | ||||||
| Type of connection | Flange | ASME B16.5/ASME B16.47 | Butt welding | ASME B16.25 | |||
| Pressure test | API 598、API 6D | ||||||
| Transmission mode | Manual, worm and worm gear transmission, pneumatic, electric |

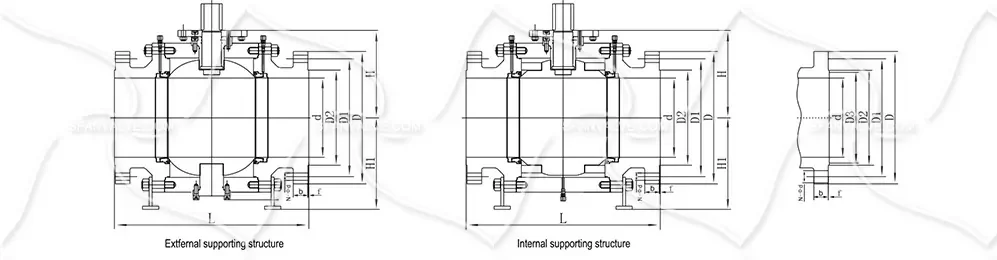

| Pressure rating | Nominal Diameter | Flanged | Butt welding | Raised face flange | General | Support board | Weight(kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class | NPS | DN | d | L(RF) | L(RTJ) | L(bw) | D | D1 | D2 | D3 | f | b | N-φd | H | H1 | H | H1 | General | Support board |
| 150 | 2" | 50 | 50 | 178 | 191 | 216 | 150 | 120.5 | 92 | - | 2 | 14.5 | 4-φ19 | 93 | 88 | - | - | 19 | - |
| 150 | 3" | 80 | 75 | 203 | 216 | 263 | 190 | 152.5 | 127 | - | 2 | 17.5 | 4-φ19 | 118.5 | 117 | - | - | 28 | - |
| 150 | 4" | 100 | 100 | 229 | 241 | 305 | 230 | 190.5 | 157 | - | 2 | 22.5 | 8-φ19 | 143.5 | 137 | - | - | 50 | - |
| 150 | 6" | 150 | 150 | 394 | 406 | 457 | 280 | 241.5 | 216 | - | 2 | 24 | 8-φ22 | 208 | 178.5 | - | - | 160 | - |
| 150 | 8" | 200 | 201 | 457 | 470 | 521 | 345 | 298.5 | 270 | - | 2 | 27 | 8-φ22 | 248 | 222 | 248 | 235 | 270 | 284 |
| 150 | 10" | 250 | 252 | 533 | 546 | 559 | 405 | 362 | 324 | - | 2 | 29 | 12-φ25 | 294 | 265 | 294 | 288 | 415 | 436 |
| 150 | 12" | 300 | 303 | 610 | 622 | 635 | 485 | 432 | 381 | - | 2 | 30.5 | 12-φ25 | 344.5 | 308.5 | 345 | 330 | 660 | 693 |
| 150 | 14" | 350 | 334 | 686 | 699 | 762 | 535 | 476 | 413 | - | 2 | 33.5 | 12-φ29 | 377 | 334 | 377 | 360 | 890 | 935 |
| 150 | 16" | 400 | 385 | 762 | 775 | 838 | 595 | 540 | 470 | - | 2 | 35 | 16-φ29 | 418 | 375 | 418 | 400 | 1080 | 1134 |
| 150 | 18" | 450 | 436 | 854 | 876 | 914 | 635 | 578 | 533 | - | 2 | 38.5 | 16-φ32 | 463 | 410 | 463 | 435 | 1480 | 1554 |
| 150 | 20" | 500 | 487 | 914 | 927 | 991 | 700 | 635 | 584 | - | 2 | 41.5 | 20-φ32 | 502 | 458 | 502 | 484 | 1970 | 2069 |
| 150 | 24" | 600 | 589 | 1067 | 1080 | 1143 | 815 | 749.5 | 692 | - | 2 | 46.5 | 20-φ35 | 586 | 534 | 586 | 568 | 3000 | 3150 |
| 150 | 26" | 650 | 633 | 1143 | - | 1245 | 870 | 806.5 | 749 | - | 2 | 28 | 24-φ35 | 626 | 582 | 626 | 594 | 3612 | 3793 |
| 150 | 28" | 700 | 684 | 1245 | - | 1346 | 927 | 864 | 800 | - | 2 | 71 | 28-φ35 | 644 | 605 | 644 | 638 | 4402 | 4622 |
| 150 | 30" | 750 | 735 | 1346 | - | 1397 | 984 | 914.5 | 857 | - | 2 | 75 | 28-φ35 | 720 | 672 | 720 | 671 | 5112 | 5368 |
| 150 | 32" | 800 | 779 | 1372 | - | 1524 | 1060 | 978 | 914 | - | 2 | 81 | 28-φ41 | 742 | 704 | 742 | 746 | 6667 | 7000 |
| 150 | 36" | 900 | 874 | 1524 | - | 1727 | 1168 | 1086 | 1022 | - | 2 | 90 | 32-φ41 | 839 | 796 | 839 | 791 | 8627 | 9058 |
| 150 | 40" | 1000 | 976 | 1753 | - | - | 1289 | 1200 | 1124 | - | 2 | 90 | 36-φ41 | 913.5 | 866 | 913.5 | 863 | 12313 | 12929 |
| 150 | 42" | 1050 | 1020 | 1855 | - | - | 1346 | 1257 | 1194 | - | 2 | 97 | 36-φ41 | 943 | 881 | 937 | 863 | 14000 | 14700 |
| 150 | 48" | 1200 | 1166 | 2134 | - | - | 1511 | 1422 | 1359 | - | 2 | 108 | 44-φ41 | 1097 | 1016 | 1097 | 1066 | 21470 | 22544 |
| 150 | 56" | 1400 | 1360 | 2489 | - | - | 1746 | 1651 | 1575 | - | 2 | 124 | 48-φ48 | 1302 | 1186 | 1302 | 1253 | 33431 | 35103 |
| 300 | 2" | 50 | 50 | 216 | 232 | 216 | 165 | 127 | 92 | - | 2 | 21 | 8-φ19 | 93 | 88 | - | - | 22 | - |
| 300 | 3" | 80 | 75 | 283 | 298 | 283 | 210 | 168.5 | 127 | - | 2 | 27 | 8-φ22 | 118.5 | 117 | - | - | 38 | - |
| 300 | 4" | 100 | 100 | 305 | 321 | 305 | 255 | 200 | 157 | - | 2 | 30.5 | 8-φ22 | 143.5 | 137 | - | - | 60 | - |
| 300 | 6" | 150 | 150 | 403 | 419 | 457 | 320 | 270 | 216 | - | 2 | 35 | 12-φ22 | 208 | 178.5 | - | - | 180 | 189 |
| 300 | 8" | 200 | 201 | 502 | 518 | 521 | 380 | 330 | 270 | - | 2 | 40 | 12-φ25 | 248 | 222 | 248 | 235 | 295 | 310 |
| 300 | 10" | 250 | 252 | 568 | 584 | 559 | 445 | 387.5 | 324 | - | 2 | 46.5 | 16-φ29 | 294 | 265 | 294 | 288 | 450 | 473 |
| 300 | 12" | 300 | 303 | 648 | 664 | 635 | 520 | 451 | 381 | - | 2 | 49.5 | 16-φ32 | 344.5 | 308.5 | 345 | 330 | 700 | 735 |
| 300 | 14" | 350 | 334 | 762 | 779 | 762 | 585 | 514.5 | 413 | - | 2 | 52.5 | 20-φ32 | 377 | 334 | 377 | 360 | 1160 | 1218 |
| 300 | 16" | 400 | 385 | 838 | 854 | 838 | 650 | 571.5 | 470 | - | 2 | 56 | 20-φ35 | 423 | 380 | 423 | 345 | 1340 | 1407 |
| 300 | 18" | 450 | 436 | 914 | 930 | 914 | 710 | 628.5 | 533 | - | 2 | 59 | 24-φ35 | 463 | 410 | 463 | 431 | 1610 | 1691 |
| 300 | 20" | 500 | 487 | 991 | 1010 | 991 | 775 | 686 | 584 | - | 2 | 62 | 24-φ35 | 502 | 458 | 502 | 474 | 2200 | 2310 |
| 300 | 24" | 600 | 589 | 1143 | 1165 | 1143 | 915 | 813 | 692 | - | 2 | 68.5 | 24-φ41 | 592 | 549 | 592 | 561 | 3460 | 3633 |
| 300 | 26" | 650 | 633 | 1245 | - | 1245 | 972 | 876.5 | 749 | - | 2 | 79 | 28-φ45 | 633 | 590 | 633 | 601 | 4017 | 4218 |
| 300 | 28" | 700 | 684 | 1346 | - | 1346 | 1035 | 940 | 800 | - | 2 | 86 | 28-φ45 | 680 | 670 | 680 | 636 | 4974 | 5223 |
| 300 | 30" | 750 | 735 | 1397 | - | 1397 | 1092 | 997 | 857 | - | 2 | 92 | 28-φ48 | 730 | 732 | 730 | 781 | 5681 | 5965 |
| 300 | 32" | 800 | 779 | 1524 | - | 1524 | 1149 | 1054 | 914 | - | 2 | 98 | 28-φ51 | 765 | 720 | 765 | 716 | 6687 | 7179 |
| 300 | 36" | 900 | 874 | 1727 | - | 1727 | 1270 | 1168 | 1022 | - | 2 | 105 | 32-φ54 | 847 | 804 | 847 | 870 | 8713 | 9058 |
| 300 | 40" | 1000 | 976 | 1956 | - | - | 1238 | 1156 | 1086 | - | 2 | 114 | 32-φ45 | 921 | 877 | 921 | 871 | 12299 | 12914 |
| 300 | 42" | 1050 | 1020 | 2083 | - | - | 1289 | 1206.5 | 1137 | - | 2 | 119 | 32-φ45 | 936 | 900 | 936 | 890 | 14379 | 15098 |
| 300 | 48" | 1200 | 1166 | 2170 | - | - | 1476 | 1372 | 1302 | - | 2 | 134 | 32-φ51 | 1093 | 1052 | 1093 | 1040 | 21482 | 22556 |
| 300 | 56" | 1400 | 1360 | 2743 | - | - | 1708 | 1600 | 1518 | - | 2 | 154 | 48-φ60 | 1263 | 1216 | 1263 | 1203 | 34066 | 35769 |
| Pressure rating | Nominal Diameter | Flanged | Butt welding | Raised face flange | General | Support board | Weight General(kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class | NPS | DN | d | L(RF) | L(RTJ) | L(BW) | D | D1 | D2 | D3 | f | b | N-φd | H | H1 | H | H1 | General | Support board |
| 600 | 2" | 50 | 50 | 292 | 295 | 292 | 165 | 127 | 92 | - | 7 | 26 | 8-φ19 | 107 | 91.5 | - | - | 38 | - |
| 600 | 3" | 80 | 75 | 356 | 359 | 356 | 210 | 168.5 | 127 | - | 7 | 32 | 8-φ22 | 140 | 119 | - | - | 65 | - |
| 600 | 4" | 100 | 100 | 432 | 435 | 432 | 275 | 216 | 157 | - | 7 | 38.5 | 8-φ25 | 164 | 150 | - | - | 118 | - |
| 600 | 6" | 150 | 150 | 559 | 562 | 559 | 355 | 292 | 216 | - | 7 | 48 | 12-φ29 | 222 | 192.5 | 224 | 208 | 250 | 263 |
| 600 | 8" | 200 | 201 | 660 | 664 | 660 | 420 | 349 | 270 | - | 7 | 56 | 12-φ32 | 271 | 235 | 272 | 248 | 430 | 452 |
| 600 | 10" | 250 | 252 | 787 | 791 | 787 | 510 | 432 | 324 | - | 7 | 64 | 16-φ35 | 317.5 | 280 | 318 | 303 | 680 | 714 |
| 600 | 12" | 300 | 303 | 838 | 841 | 838 | 560 | 489 | 381 | - | 7 | 67 | 20-φ35 | 360 | 320 | 355 | 341 | 985 | 1034 |
| 600 | 14" | 350 | 334 | 899 | 892 | 889 | 605 | 527 | 413 | - | 7 | 70 | 20-φ39 | 390 | 350 | 390 | 370 | 1287 | 1351 |
| 600 | 16" | 400 | 385 | 991 | 994 | 991 | 685 | 603 | 470 | - | 7 | 77 | 20-φ41 | 440 | 400 | 400 | 415 | 1640 | 1722 |
| 600 | 18" | 450 | 436 | 1092 | 1095 | 1092 | 745 | 654 | 533 | - | 7 | 83 | 20-φ44 | 485 | 430 | 485 | 460 | 2268 | 2381 |
| 600 | 20" | 500 | 487 | 1194 | 1200 | 1194 | 815 | 724 | 584 | - | 7 | 89 | 24-φ44 | 533 | 490 | 533 | 510 | 2830 | 2972 |
| 600 | 24" | 600 | 589 | 1397 | 1407 | 1397 | 940 | 838 | 692 | - | 7 | 102 | 24-φ51 | 616 | 573 | 616 | 595 | 4400 | 4620 |
| 600 | 26" | 650 | 633 | 1448 | 1448 | 1448 | 1016 | 914.5 | 749 | - | 7 | 108 | 28-φ51 | 643.5 | 612 | 643.5 | 645 | 5455 | 5728 |
| 600 | 28" | 700 | 684 | 1549 | - | 1549 | 1073 | 965 | 800 | - | 7 | 112 | 28-φ54 | 665 | 670 | 665 | 692 | 7610 | 7991 |
| 600 | 30" | 750 | 735 | 1651 | - | 1651 | 1130 | 1022 | 857 | - | 7 | 114 | 28-φ54 | 753 | 710 | 753 | 742 | 8420 | 8841 |
| 600 | 32" | 800 | 779 | 1778 | - | 1778 | 1194 | 1079.5 | 914 | - | 7 | 118 | 28-φ54 | 768 | 780 | 768 | 804 | 9230 | 9692 |
| 600 | 36" | 900 | 874 | 2063 | - | 2083 | 1314 | 1194 | 1022 | - | 7 | 124 | 28-φ67 | 861 | 840 | 861 | 865 | 13000 | 13650 |
| 900 | 2" | 50 | 50 | 368 | 371 | 368 | 215 | 165 | 124 | 95.25 | 7.92 | 38.5 | 8-φ25 | 126.5 | 105 | - | - | 57 | - |
| 900 | 3" | 80 | 75 | 384 | 387 | 381 | 240 | 190.5 | 156 | 123.83 | 7.92 | 38.5 | 8-φ25 | 150 | 130 | - | - | 87 | - |
| 900 | 4" | 100 | 100 | 457 | 460 | 457 | 290 | 235 | 181 | 149.23 | 7.92 | 45 | 8-φ32 | 172.5 | 158 | - | - | 193 | - |
| 900 | 6" | 150 | 150 | 610 | 613 | 610 | 380 | 317.5 | 241 | 211.12 | 7.92 | 56 | 12-φ32 | 230 | 197 | 235 | 210 | 340 | 357 |
| 900 | 8" | 200 | 201 | 737 | 740 | 737 | 470 | 393.5 | 308 | 269.88 | 7.92 | 64 | 12-φ39 | 285 | 250 | 290 | 255 | 570 | 598.5 |
| 900 | 10" | 250 | 252 | 838 | 841 | 838 | 545 | 470 | 362 | 323.85 | 7.92 | 70 | 16-φ39 | 330 | 294 | 330 | 312 | 912 | 957.6 |
| 900 | 12" | 300 | 303 | 965 | 968 | 965 | 610 | 533.5 | 419 | 381 | 7.92 | 79.5 | 20-φ39 | 366 | 334 | 366 | 351 | 1325 | 1391 |
| 900 | 14" | 350 | 322 | 1029 | 1038 | 1029 | 640 | 559 | 467 | 419.1 | 11.13 | 86 | 20-φ42 | 415 | 368 | 415 | 376 | 1620 | 1701 |
| 900 | 16" | 400 | 373 | 1130 | 1140 | 1130 | 705 | 616 | 524 | 469.9 | 11.13 | 89 | 20-φ45 | 452 | 408 | 452 | 421 | 1990 | 2090 |
| 900 | 18" | 450 | 423 | 1219 | 1232 | 1219 | 785 | 686 | 594 | 533.4 | 12.7 | 102 | 20-φ51 | 501 | 461 | 501 | 463 | 2611 | 2742 |
| 900 | 20" | 500 | 471 | 1321 | 1334 | 1321 | 855 | 749.5 | 648 | 584.2 | 12.7 | 108 | 20-φ54 | 544 | 506 | 544 | 505 | 3880 | 4074 |
| 900 | 24" | 600 | 570 | 1549 | 1568 | 1549 | 1040 | 901.5 | 772 | 892.15 | 15.88 | 140 | 20-φ67 | 657 | 616 | 657 | 608 | 6296 | 6611 |
| 900 | 26" | 650 | 617 | 1651 | - | 1651 | 1086 | 952.5 | 749 | - | 7 | 124 | 20-φ73 | 700 | 635 | 700 | 725 | 8050 | 8500 |
| 900 | 28" | 700 | 665 | 1753 | - | 1753 | 1168 | 1022 | 800 | - | 7 | 143 | 20-φ79 | 727 | 685 | 727 | 673 | 9166 | 9624 |
| 900 | 30" | 750 | 712 | 1880 | - | 1880 | 1232 | 1086 | 857 | - | 7 | 149 | 20-φ79 | 760 | 722 | 760 | 706 | 11277 | 11841 |
| 900 | 32" | 800 | 760 | 2032 | - | 2032 | 1314 | 1156 | 914 | - | 7 | 159 | 20-φ86 | 795 | 755 | 795 | 734 | 12300 | 12915 |
| 900 | 36" | 900 | 855 | 2286 | - | 2285 | 1461 | 1289 | 1022 | - | 7 | 172 | 20-φ92 | 886 | 846 | 886 | 822 | 17500 | 18375 |
| Pressure rating | Nominal Diameter | Flanged | Butt welding | Raised face flange | General | Support board | Weight General(kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class | NPS | DN | d | L(RF) | L(RTJ) | L(BW) | D | D1 | D2 | D3 | f | b | N-φd | H | H1 | H | H1 | General | Support board |
| 1500 | 2" | 50 | 50 | 368 | 371 | 368 | 215 | 165 | 124 | 95.25 | 7.92 | 38.5 | 8-φ25 | 126.5 | 105 | - | - | 57 | - |
| 1500 | 3" | 80 | 75 | 470 | 473 | 470 | 265 | 203.2 | 168 | 136.53 | 7.92 | 48 | 8-φ32 | 166 | 149 | - | - | 168 | - |
| 1500 | 4" | 100 | 100 | 546 | 549 | 546 | 310 | 241.3 | 194 | 161.93 | 7.92 | 54 | 8-φ35 | 219 | 178 | - | - | 230 | - |
| 1500 | 6" | 150 | 144 | 705 | 711 | 705 | 395 | 317.5 | 248 | 211.14 | 9.53 | 83 | 12-φ39 | 268 | 227 | - | - | 685 | - |
| 1500 | 8" | 200 | 192 | 832 | 841 | 832 | 485 | 393.7 | 318 | 269.88 | 11.13 | 92 | 12-φ45 | 303 | 257 | 305 | 270 | 993 | 1043 |
| 1500 | 10" | 250 | 239 | 991 | 1000 | 991 | 585 | 482.6 | 371 | 323.85 | 11.13 | 108 | 12-φ51 | 358 | 323 | 358 | 336 | 1781 | 1870 |
| 1500 | 12" | 300 | 287 | 1130 | 1146 | 1130 | 675 | 571.5 | 438 | 381 | 14.27 | 124 | 16-φ54 | 414 | 381 | 414 | 395 | 2280 | 2394 |
| 1500 | 14" | 350 | 315 | 1257 | 1276 | 1257 | 750 | 635 | 489 | 419.1 | 15.88 | 134 | 16-φ60 | 471 | 432 | 471 | 441 | 3000 | 3150 |
| 1500 | 16" | 400 | 350 | 1384 | 1407 | 1384 | 825 | 704.8 | 546 | 469.9 | 17.48 | 146.5 | 16-φ67 | 498 | 453 | 498 | 456 | 3816 | 4007 |
| 1500 | 18" | 450 | 406 | 1537 | 1559 | - | 915 | 774.7 | 613 | 533.4 | 17.48 | 162 | 16-φ73 | 570 | 530 | 570 | 535 | 6195 | 6505 |
| 1500 | 20" | 500 | 454 | 1664 | 1686 | - | 985 | 831.8 | 673 | 584.2 | 17.48 | 178 | 16-φ79 | 611 | 569 | 611 | 561 | 9075 | 9529 |
| 2500 | 2" | 50 | 42 | 451 | 454 | 451 | 235 | 171.4 | 133 | 101.6 | 7.92 | 51 | 8-φ29 | 149 | 123 | - | - | 140 | - |
| 2500 | 3" | 80 | 62 | 578 | 584 | 578 | 305 | 228.6 | 168 | 127 | 9.53 | 67 | 8-φ35 | 215 | 171 | - | - | 216 | - |
| 2500 | 4" | 100 | 87 | 673 | 683 | 673 | 355 | 273 | 203 | 157.18 | 11.13 | 76.5 | 8-φ42 | 245 | 206 | - | - | 328 | - |
| 2500 | 6" | 150 | 131 | 914 | 927 | 914 | 485 | 368.3 | 279 | 228.6 | 12.7 | 108 | 8-φ54 | 305 | 263 | 306 | 265 | 1030 | 1082 |
| 2500 | 8" | 200 | 179 | 1022 | 1038 | 1022 | 550 | 438.2 | 340 | 279.4 | 14.27 | 127 | 12-φ54 | 361 | 330 | 361 | 336 | 1570 | 1649 |
| 2500 | 10" | 250 | 223 | 1270 | 1292 | 1270 | 675 | 539.8 | 425 | 342.9 | 17.48 | 166 | 12-φ67 | 426 | 388 | 426 | 394 | 2550 | 2678 |
| 2500 | 12" | 300 | 265 | 1422 | 1445 | 1422 | 760 | 619.1 | 495 | 406.4 | 17.48 | 185 | 16-φ74 | 479 | 440 | 479 | 446 | 3872 | 4066 |
