1. Design and manufacture according to: API 600, ASME B16.10
2. Connection ends according to:
a) flange connection according to ASME B16.5 ;
b) butt weld according to ASME B16.25 ;
3. Test and inspection according to: API 598.

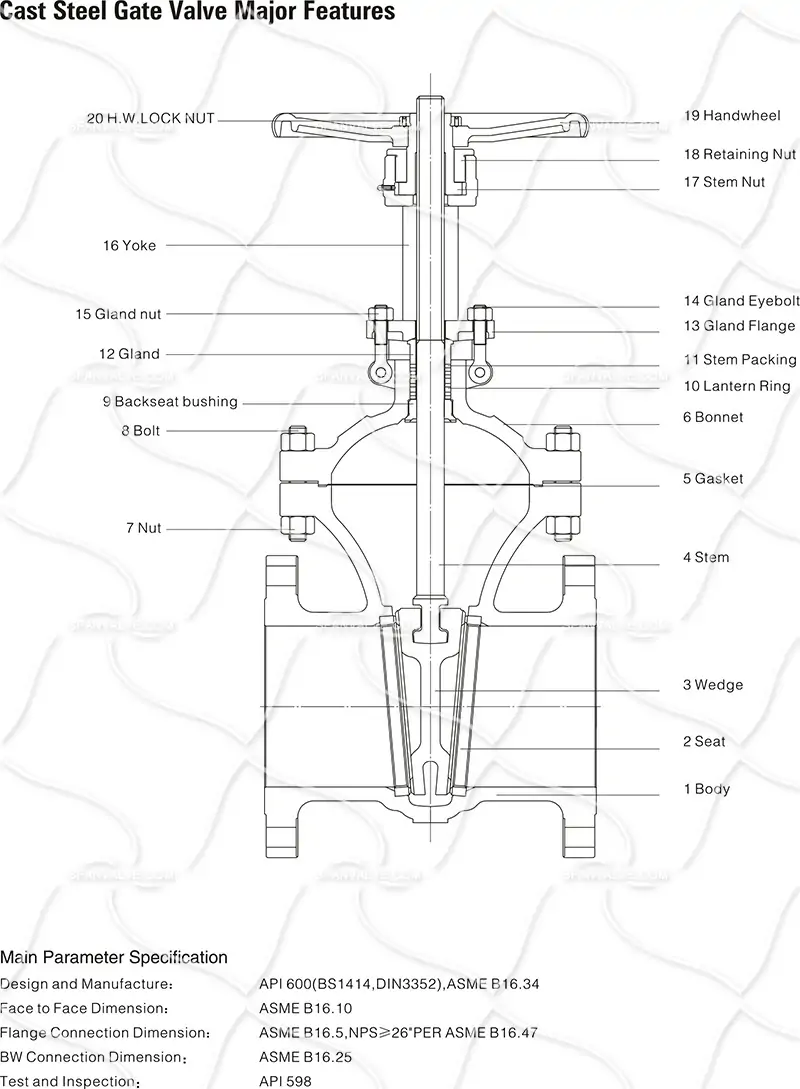

4. Structure features: B.B, PSB; OS&Y
5. Material conform to : ANSI/ASTM

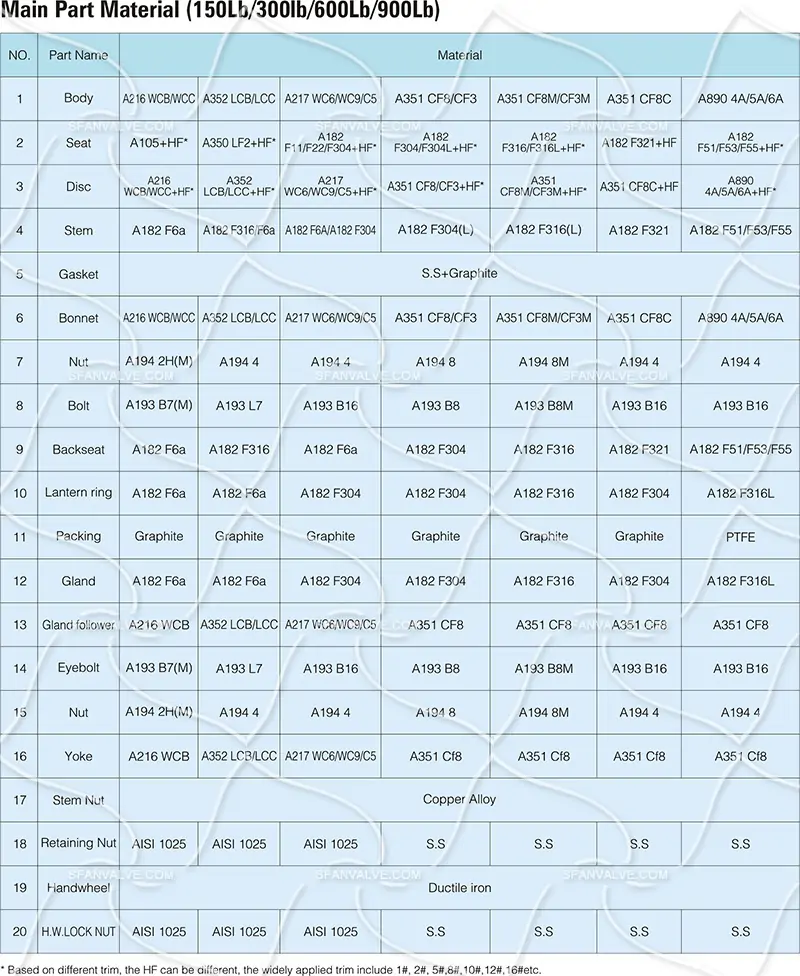

6. Main Material: WCB, CF8M, CF3M, CN7M, CW12MW, CW6MC, CY40, CR20, etc.
Robust Cast Steel Flanged Gate Valves for Heavy-Duty Applications
Our series of cast steel flanged end gate valves are engineered to meet the demands of the most challenging industrial environments. Designed with a 150lb pressure rating and featuring a reliable OS&Y (Outside Screw and Yoke) design, these valves provide clear visual indication of the valve position, ensuring operational safety and ease of maintenance.
A key feature of this product line is its availability in an extensive range of large diameters, from 2 inches all the way up to 40 inches, making it an ideal solution for main water lines, power generation facilities, and large-scale process plants. The flanged ends facilitate secure and straightforward installation into existing piping systems, while the durable cast steel construction offers superior strength and corrosion resistance.
Whether you need a standard 2-inch gate valve or a custom 40-inch large diameter gate valve, our products deliver consistent performance and long service life. Explore our full specifications and size options to find the perfect industrial gate valve for your application.
| Brand | SFAN VALVE OR "OEM" |
|---|---|
| Flow bore | Standard bore |
| Material | Carbon steel, Stainless steel, Alloy steel or other |
| Dimension | DN50(2") to DN1200(48") |
| Class | 150~2500 |
| Medium | Water, oil &gas. |
| Temperature | -196℃(cryogenic design) to 700℃ |
| Valve test | 100% quantity tested before delivery |
| Valve guarantee | 18 months after shipments and 12 months after installed |
| Packing | Plywood or carton cases |
| Delivery time | 7 days to 30 days |
| Place of Origin | Zhejiang, China |
Your questions answered
For Sfanvalve’s standard products, we are willing to start production without any payment in advance. We accept product inspection upon completion, and payment is only due once the inspection is passed. SFAN will then arrange shipment to your designated warehouse as per your requirements.
Yes. After receiving the contract, we will provide technical drawings. Production will commence based on these drawings once they are confirmed by both parties.
After receiving the contract and confirming the drawings, we will provide a production schedule and manufacture strictly according to it. We will provide photos or videos to share and make a record for every stage of the production process. If a serious delay occurs due to management error, we will arrange air shipment and bear all costs by air.”
The warranty period is 18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
