1. Design and manufacture according to: API 6D, BS 5351
2. Connection ends according to:
a) socket welded dimension according to ANSI B16.11;
b) screw thread dimension according to ANSI B1.20.1;
3. Test and inspection according to: API 598.
4. Structure features: floating ball;
5. Material conform to : ANSI/ASTM
6. Main Material: A105(N), LF2, F304(L), F316(L), F51, F91, F11, F22, F321, etc.
The 3-piece forged carbon steel ball valve delivers reliable shut-off in high-temperature systems. Made from ASTM A105 forged carbon steel, it offers superior strength and durability up to 560°C. Its extended stem design protects the packing from heat, while socket weld (SW) ends ensure secure, permanent installation in pressurized pipelines. Rated at 800LB, this valve complies with API 607 and is 100% tested per API 598. The soft-seated PTFE ball mechanism ensures zero leakage under normal conditions. Ideal for oil, gas, and chemical processing applications. Trust SFANVALVE for precision-engineered 3-piece forged carbon steel ball valves built for performance and safety.
| Brand | SFAN VALVE OR "OEM" |
|---|---|
| Flow bore | Standard bore or Full bore |
| Material | Carbon steel, Stainless steel, Alloy steel or other |
| Dimension | DN10(1/4") to DN100(4") |
| Class | 150~2500 |
| Medium | Water, oil &gas. |
| Temperature | -196℃(cryogenic design) to 560℃ |
| Valve test | 100% quantity tested before delivery |
| Valve guarantee | 18 months after shipments and 12 months after installed |
| Packing | Plywood or carton cases |
| Delivery time | 7 days to 30 days |
| Place of Origin | Zhejiang, China |

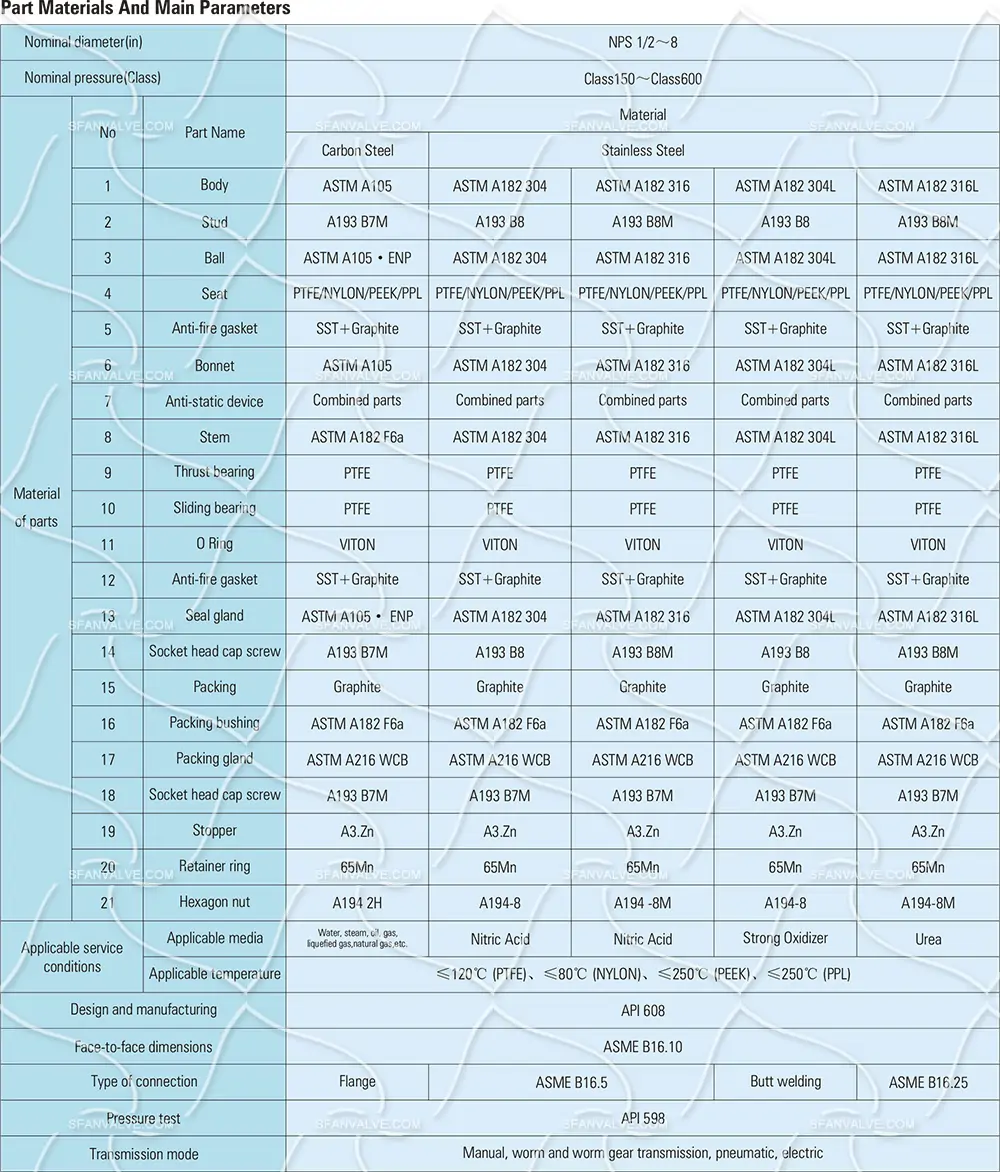

Part Materials And Main Parameters
| Nominal diameter(in) | NPS 1/2～8 | ||||||
|---|---|---|---|---|---|---|---|
| Nominal pressure(Class) | Class150～Class600 | ||||||
| Material of parts | No | Part Name | Carbon Steel | Stainless Steel | |||
| Material of parts | 1 | Body | ASTM A105 | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
| Material of parts | 2 | Stud | A193 B7M | A193 B8 | A193 B8M | A193 B8 | A193 B8M |
| Material of parts | 3 | Ball | ASTM A105 • ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
| Material of parts | 4 | Seat | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL | PTFE/NYLON/PEEK/PPL |
| Material of parts | 5 | Anti-fire gasket | SST＋Graphite | SST＋Graphite | SST＋Graphite | SST＋Graphite | SST＋Graphite |
| Material of parts | 6 | Bonnet | ASTM A105 | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
| Material of parts | 7 | Anti-static device | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts |
| Material of parts | 8 | Stem | ASTM A182 F6a | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
| Material of parts | 9 | Thrust bearing | PTFE | PTFE | PTFE | PTFE | PTFE |
| Material of parts | 10 | Sliding bearing | PTFE | PTFE | PTFE | PTFE | PTFE |
| Material of parts | 11 | O Ring | VITON | VITON | VITON | VITON | VITON |
| Material of parts | 12 | Anti-fire gasket | SST＋Graphite | SST＋Graphite | SST＋Graphite | SST＋Graphite | SST＋Graphite |
| Material of parts | 13 | Seal gland | ASTM A105 • ENP | ASTM A182 304 | ASTM A182 316 | ASTM A182 304L | ASTM A182 316L |
| Material of parts | 14 | Socket head cap screw | A193 B7M | A193 B8 | A193 B8M | A193 B8 | A193 B8M |
| Material of parts | 15 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite |
| Material of parts | 16 | Packing bushing | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a |
| Material of parts | 17 | Packing gland | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB |
| Material of parts | 18 | Socket head cap screw | A193 B7M | A193 B7M | A193 B7M | A193 B7M | A193 B7M |
| Material of parts | 19 | Stopper | A3.Zn | A3.Zn | A3.Zn | A3.Zn | A3.Zn |
| Material of parts | 20 | Retaining ringer | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn |
| Material of parts | 21 | Hexagon nut | A194 2H | A194-8 | A194-8M | A194-8 | A194-8M |
| Applicable service conditions | Applicable media | Water, steam, oil, gas, liquefied gas,natural oil | Nitric Acid | Nitric Acid | Strong Oxidizer | Urea | |
| Applicable service conditions | Applicable temperature | ≤120℃ (PTFE)、≤80℃ (NYLON)、≤250℃ (PEEK)、≤250℃ (PPL) | |||||
| Design and manufacturing | API 608 | ||||||
| Face-to-face dimensions | ASME B16.10 | ||||||
| Type of connection | Flange | ASME B16.5 | Butt welding | ASME B16.25 | |||
| Pressure test | API 598 | ||||||
| Transmission mode | Manual, worn and worn gear transmission, pneumatic, electric |
CL800-CL1500 Connection Ends May Be Pipe -welded (Butt-welding or Socket Weldingl and/or Threaded. Design to Bs5351
| Specification(NPS) | F.P. | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|---|
| Face to face(mm) | L | 75 | 75 | 85 | 100 | 115 | 130 | 150 | 180 |
| Center to handle end(mm) | B | 108 | 108 | 108 | 146 | 178 | 178 | 200 | 200 |
| Height(mm) | H | 51 | 51 | 51 | 108 | 81 | 85 | 105 | 105 |
| Height(Flow port dimensions)(mm) | d CL800 | 6 | 9 | 13 | 18 | 23 | 28 | 35 | 49 |
| Height(Flow port dimensions)(mm) | d CL1500 | 6 | 9 | 13 | 19 | 25 | 32 | 38 | 49 |
CL1500 Connection Ends May Be Pipe-welded (Butt-welding or Socket Weldingl and/or Threaded, Design to Bs5351
| Specification(NPS) | F.P. | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|---|
| Face to face(mm) | L | 85 | 85 | 100 | 120 | 135 | 160 | 185 | 220 |
| Center to handle end(mm) | B | 108 | 108 | 108 | 146 | 178 | 178 | 200 | 200 |
| Height(mm) | H | 51 | 51 | 51 | 108 | 81 | 85 | 105 | 105 |
| Height(Flow port dimensions)(mm) | d CL800 | 6 | 9 | 13 | 18 | 23 | 28 | 35 | 49 |
| Height(Flow port dimensions)(mm) | d CL1500 | 6 | 9 | 13 | 19 | 25 | 32 | 38 | 49 |
Main Parts & Material List
| NO. | Part name | A105/F6a | LF2/F304 | F304(L)/F304(L) | F316(L)/F316(L) | F51/F51 |
|---|---|---|---|---|---|---|
| 1 | Body | A105 | LF2 | F304(L) | F316(L) | F51 |
| 2 | Seat | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK |
| 4 | Stem | 410 | 304 | 304(L) | 316(L) | F51 |
| 5 | Gasket | PTFE | PTFE | PTFE | PTFE | PTFE |
| 6 | Bonnet | A105 | LF2 | F304 | F316 | F51 |
| 9 | Gland | 410 | 304 | 304(L) | 316(L) | F51 |
| 11 | Gland flange | A105 | LF2 | F304 | F316 | F51 |
| 14 | Flat nut | 8 | 8 | 8 | 8 | 8M |
| 18 | Packing | PTFE | PTFE | PTFE | PTFE | PTFE |
| 40 | Ball | F6 | F304 | F304(L) | F316(L) | F51 |
| 41 | O-ring | VITON | VITON | VITON | VITON | VITON |
| 42 | Back seat gasket | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK | RPTFE or PEEK |
| 43 | Wrench | ANSI 1025 | ANSI 1025 | ANSI 1025 | ANSI 1025 | ANSI 1025 |
| 44 | Screw | 88 | 88 | 88 | 88 | 88 |
| 45 | Lock | End product | End product | End product | End product | End product |
| 46 | Locator | ANSI 1025 | ANSI 1025 | ANSI 1025 | ANSI 1025 | ANSI 1025 |
Your questions answered
For Sfanvalve’s standard products, we are willing to start production without any payment in advance. We accept product inspection upon completion, and payment is only due once the inspection is passed. SFAN will then arrange shipment to your designated warehouse as per your requirements.
Yes. After receiving the contract, we will provide technical drawings. Production will commence based on these drawings once they are confirmed by both parties.
After receiving the contract and confirming the drawings, we will provide a production schedule and manufacture strictly according to it. We will provide photos or videos to share and make a record for every stage of the production process. If a serious delay occurs due to management error, we will arrange air shipment and bear all costs by air.”
The warranty period is 18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
