Forged Steel Bronze Globe Valve – 16K Pressure Rating, Flanged Ends, OS&Y Design, CAC703 Alloy

Technical Specifications:

Designed and manufactured in accordance with API 602.
End connection flange ends according to: ANSI B16.5;
Face-to-face dimensions in accordance with ASME B16.10-2023.
Testing and inspection performed per API 598.
Structural features: Bolted Bonnet (B.B.), Pressure Seal Bonnet (PSB), Outside Screw and Yoke (OS&Y).
Materials conform to ANSI/ASTM standards.
Primary materials include: A105(N), LF2, F304(L), F316(L), F51, F91, F11, F22, F321, C95800, C95500, etc.

Product Summary

Discover the forged steel bronze globe valve engineered for long-lasting performance in industrial environments. This high-grade valve combines a durable bronze body (CAC703 alloy) with forged steel components, offering superior resistance to corrosion and wear. Rated at 16K pressure, it’s ideal for water, steam, and light oil applications in power plants, HVAC systems, and marine industries. The OS&Y (Outside Screw & Yoke) design allows full visual indication of valve position and reliable sealing. With flanged ends for easy installation and compliance with JIS standards, it ensures leak-free operation. Every unit undergoes 100% testing per API 598 and comes with an 18-month warranty. Trust SFANVALVE for precision-engineered industrial globe valves that deliver efficiency, safety, and durability.

Brand	SFAN VALVE OR "OEM"
Flow bore	Standard bore or Full bore
Material	Carbon steel, Stainless steel, Alloy steel or other
Dimension	DN10(1/4") to DN100(4")
Class	150~2500
Medium	Water, oil &gas.
Temperature	-196℃(cryogenic design) to 560℃
Valve test	100% quantity tested before delivery
Valve guarantee	18 months after shipments and 12 months after installed
Packing	Plywood or carton cases
Delivery time	7 days to 30 days
Place of Origin	Zhejiang, China

3D VIDEO

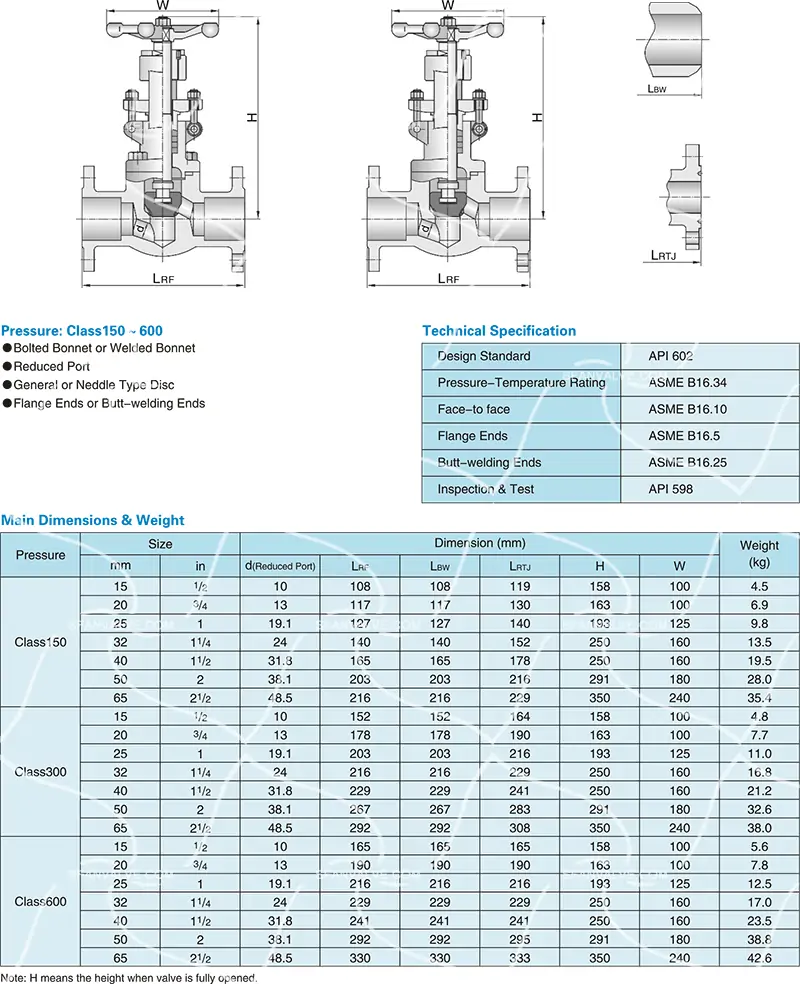

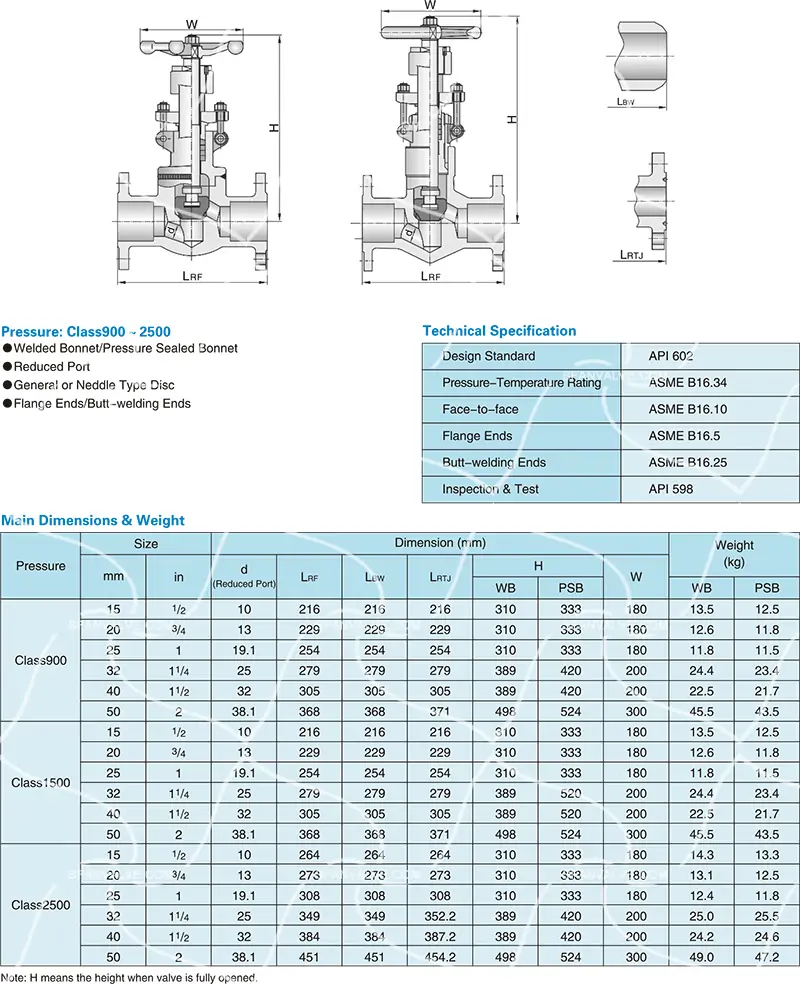

Catalog details:

Your questions answered

Common questions

How can you trust SFANVALVE ?

For Sfanvalve’s standard products, we are willing to start production without any payment in advance. We accept product inspection upon completion, and payment is only due once the inspection is passed. SFAN will then arrange shipment to your designated warehouse as per your requirements.

If we purchase from you, will you manufacture according to our requirements ?

Yes. After receiving the contract, we will provide technical drawings. Production will commence based on these drawings once they are confirmed by both parties.

Will "SFANVALVE" deliver on time ?

After receiving the contract and confirming the drawings, we will provide a production schedule and manufacture strictly according to it. We will provide photos or videos to share and make a record for every stage of the production process. If a serious delay occurs due to management error, we will arrange air shipment and bear all costs by air.”

What is the warranty terms ？

The warranty period is 18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
