CF8M strainer filter, 2 inch, threaded ends, stainless steel Y type design for chemical and food processing systems

CF8M Strainer Filter 2 inch Threaded End 3

CF8M SS Strainer Filter 2 inch Threaded End

CF8M Strainer Filter – 2 Inch, Threaded Ends, Y Type Design, ASTM A351 CF8M, ASME B16.34 Compliant

Technical Specifications:

Designed and manufactured in accordance with API 602.
End connections per the following standards:
a) Socket weld dimensions: ANSI B16.11.
b) NPT Threaded dimensions: ANSI B1.20.1. / BSP.
Face-to-face dimensions in accordance with ASME B16.10-2023.
Testing and inspection performed per API 598.
Structural features: Bolted Bonnet (B.B.), Welded Bonnet (W.B.), Pressure Seal Bonnet (PSB), Outside Screw and Yoke (OS&Y).
Materials conform to ANSI/ASTM standards.
Primary materials include: A105(N), LF2, F304(L), F316(L), F51, F91, F11, F22, F321, etc.

Product Summary

The CF8M strainer filter is designed to protect critical equipment from debris in corrosive or sanitary fluid systems. Made from ASTM A351 CF8M (316L) cast stainless steel, it ensures long-term durability in chemical, food, and pharmaceutical applications. Its Y-type flow path reduces pressure loss and erosion, while the 2-inch threaded ends allow easy installation in compact piping layouts. Every filter is manufactured to ASME B16.34 standards and tested per API 598. The bolted bonnet enables quick access to the internal screen for cleaning or replacement. Ideal for protecting pumps, valves, and instruments where clean fluid flow is essential. Trust SFANVALVE for precision-engineered CF8M strainer filters that deliver reliable performance.

Brand	SFAN VALVE OR "OEM"
Flow bore	Standard bore or Full bore
Material	Carbon steel, Stainless steel, Alloy steel or other
Dimension	DN10(1/4") to DN100(4")
Class	150~2500
Medium	Water, oil &gas.
Temperature	-196℃(cryogenic design) to 560℃
Valve test	100% quantity tested before delivery
Valve guarantee	18 months after shipments and 12 months after installed
Packing	Plywood or carton cases
Delivery time	7 days to 30 days
Place of Origin	Zhejiang, China

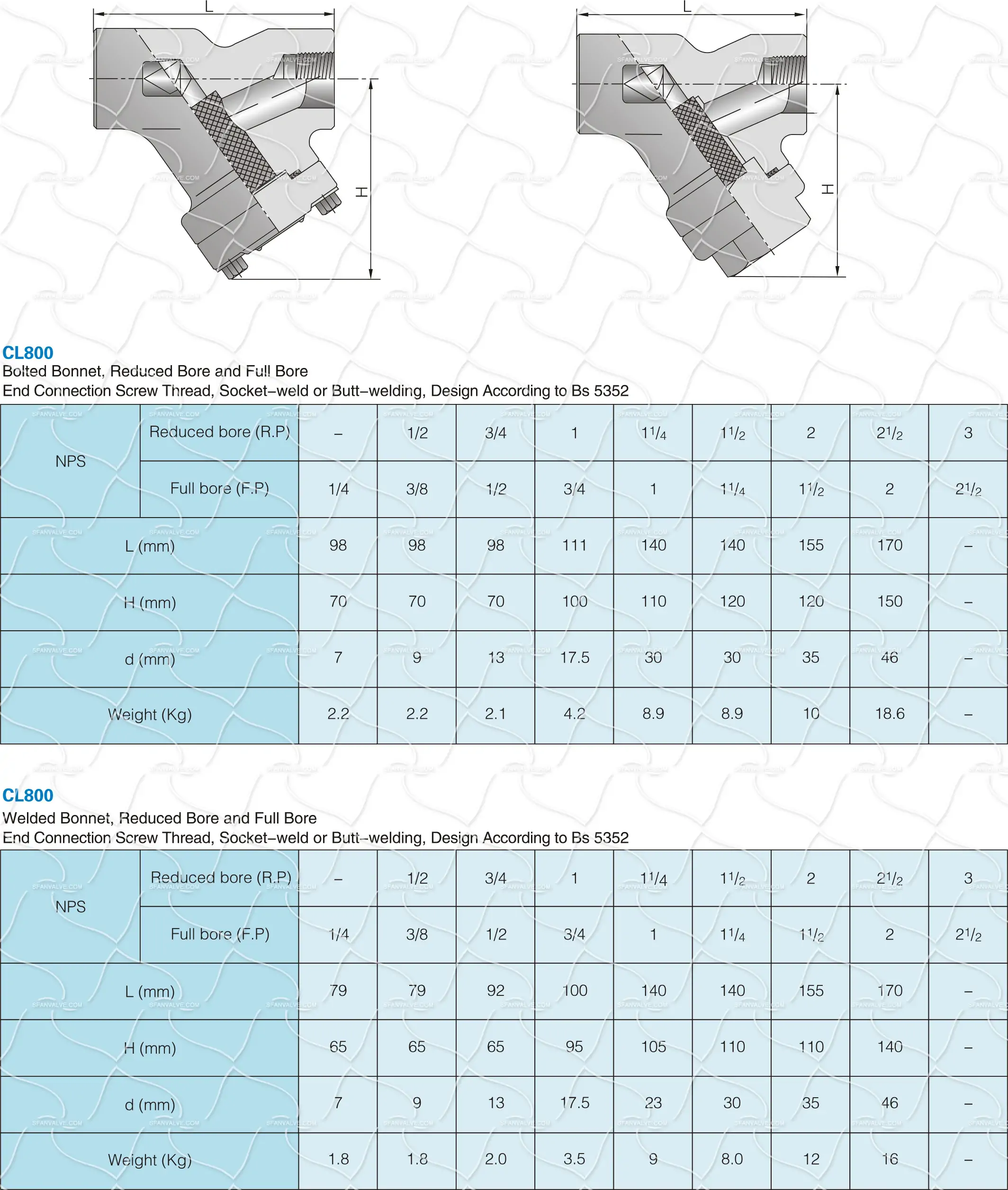

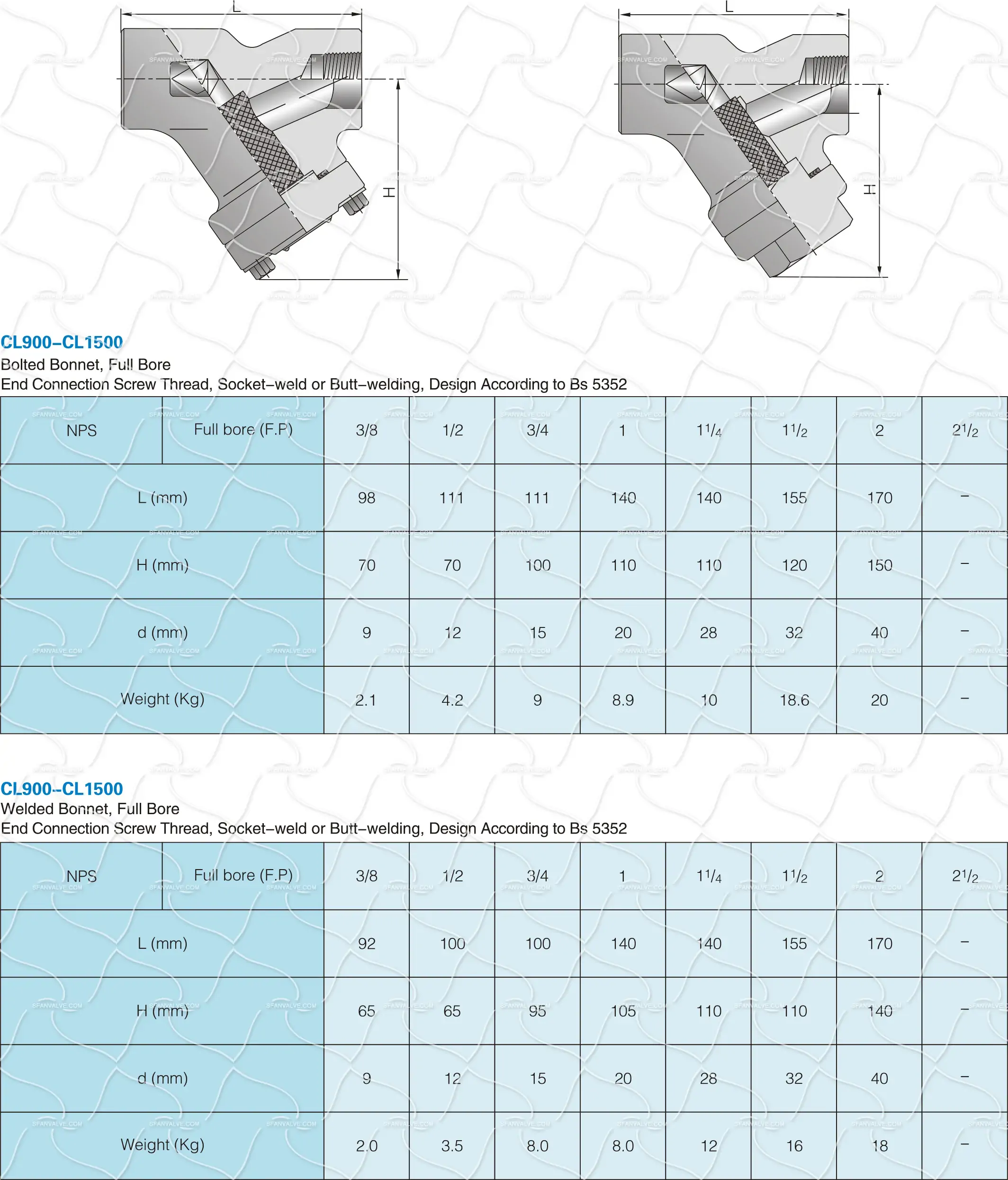

Catalog details:

Your questions answered

Common questions

How can you trust SFANVALVE ?

For Sfanvalve’s standard products, we are willing to start production without any payment in advance. We accept product inspection upon completion, and payment is only due once the inspection is passed. SFAN will then arrange shipment to your designated warehouse as per your requirements.

If we purchase from you, will you manufacture according to our requirements ?

Yes. After receiving the contract, we will provide technical drawings. Production will commence based on these drawings once they are confirmed by both parties.

Will "SFANVALVE" deliver on time ?

After receiving the contract and confirming the drawings, we will provide a production schedule and manufacture strictly according to it. We will provide photos or videos to share and make a record for every stage of the production process. If a serious delay occurs due to management error, we will arrange air shipment and bear all costs by air.”

What is the warranty terms ？

The warranty period is 18 months from the date of shipment or 12 months from the date of installation, whichever occurs first.
